Product overview

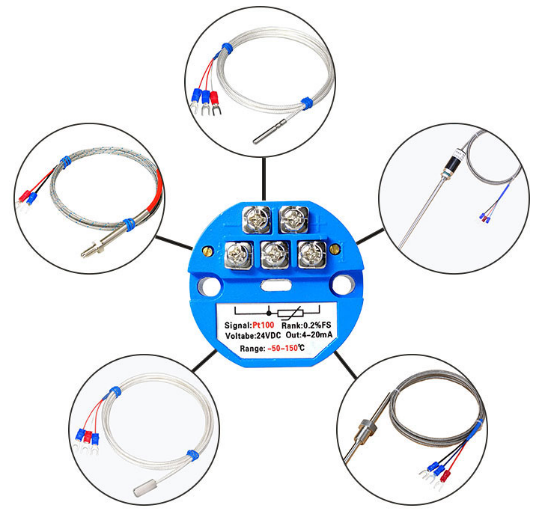

The TIT series integrative temperature transmitter is a perfect combination of temperature sensor and transmitter, and converts the temperature signal within the scope of -200～1600℃ into two-wire system 4～20mA DC electrical signal in a very simple way to be transmitted to the displayer, regulator, recorder and DCS to realize accurate measurement and control of temperature. It's an upgrading product for temperature measurement and control of modern industrial sites and scientific research institutions and a prerequisite product of total distributed system and digital bus system.

Product features

● The thermocouple temperature variation is used to lower the cost without compensating lead wire;

● Two-wire system 4-20mA DC output. Far transmission distance and strong capacity of resisting disturbance;

● Multiple indicator functions (such as liquid crystal display, digital tube and pointer) facilitate the timely on-site monitoring;

● High measurement precision and good long-term stability;

● Explosive-proof grade: dll BT4 and dII BT5;

● Cold side, temperature excursion and nonlinear automatic compensation;

● Mechanical protection IP65 and level of protection: IP54;

● Subminiature (module Ø44x18) integration and strong universality;

● The epoxy resin casting process is used in the temperature module which can be used in various bad and dangerous places;

● It's of integrated design and simple and reasonable structure and can directly replace common fabricated thermocouple and thermal resistance;

● In case of on-site ambient temperature＞70℃, the transmitter and field displayer can be of separation (isolation) type installation.

Technical indicators

Product model selection
