Product overview
The PHS piston actuator is an adjustable zero proportion pneumatic piston type straight stroke actuator with spring return. The pneumatic piston actuator is characterized by large output force, simple structure, being reliable and light, quick movement velocity and good antiknock characteristic. The pneumatic piston actuator can be matched with straight in single and double seat, angle type, sleeve, diaphragm and fine and small straight stroke control valve and becomes the pneumatic piston type control valve after the locator is equipped. Different spring ranges are chosen to get the required allowable pressure differential. It's applicable to the two-position spring return piston actuator which is compatible with the stop valve. It's characterized by quick action, being reliable and light and small volume.
Technical parameters
Model | PHS100 | PHS125 | PHS160 | PHS200 | PHS250 | PHS320 | |
Cylinder diameter mm | 100 | 125 | 160 | 200 | 250 | 320 | |
Travel mm | 10 | 10/16 | 16/25 | 25/40 | 40/60 | 60 | |
Spring range KPa | 40-200; 80-240; 100-200; 200-350; 350-500 | ||||||
Supply gas pressure MPa | 0.4-0.6; ZS-P: The air-to-open type is 0.05 greater than the upper limit of the spring range, and the air-to-close type is subject to upper limit+ lower limit+0.05 | ||||||
ZS-P push rod output N | 350-500KPa | 2674 | 4165 | 6860 | 10740 | 16800 | 27440 |
200-350KPa | 1528 | 2300 | 3920 | 6140 | 9600 | 15680 | |
100-200KPa | 764 | 1190 | 1960 | 3070 | 4800 | 7840 | |
80-240Kpa | 610 | 952 | 1568 | 2450 | 3840 | 6270 | |
Equipped with side mounting hand-operated gear | HX10 | HX16 | HX20 | HX25 | HX32 | ||
Note: The calculation of thrusting force is subject to the starting spring force of reaction. The spring scope is subject to 350-500KPa grade, and the small spring scope is used in case that the air-to-close valve is equipped.
Performance index
Item | Without locator | With locator |
Intrinsic error % | ±6 | ±1.5 |
Return difference % | 3 | 1.5 |
Dead zone % | 1.2 | 1 |
Starting/ending point deviation % | 2.5 | |
Air tightness | Input into cylinder at 0.6mpa, pressure drop after the gas source is cut off ≤5KPa/5min | |
Working life | Not less than 0.1 million times | |
Note: When being combined with control valve, the valve positioner is equipped generally.
Part material
Part name | Material | Part name | Material |
Air cylinder | Finish draw aluminum alloy tube and hard anodic oxidation | Piston | LY12 |
Compression spring | 60Si2MnA | Push rod | 2Cr13 |
QY-shape sealing ring | TPU and EPDM | Holder | HT250 |

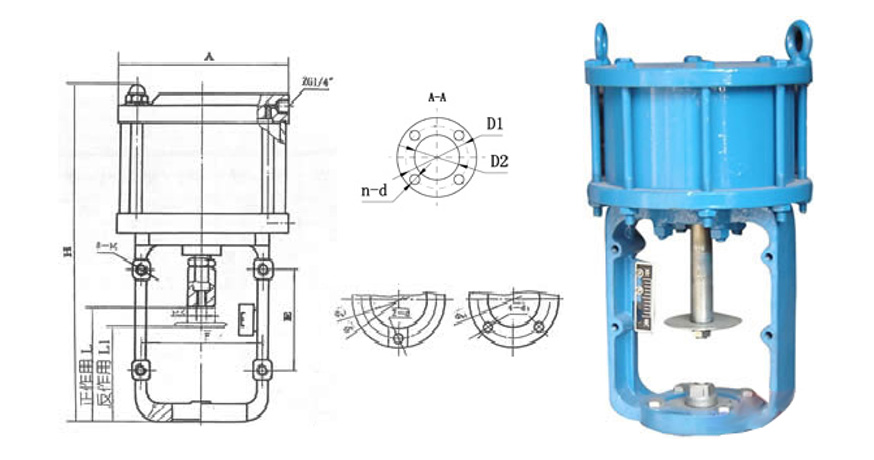

Connection dimension
Model/size | PHS100 | PHS125 | PHS160 | PHS200 | PHS250 | PHS320 |
A | 125×125 | 148×148 | 185×185 | 232×232 | 283×283 | 283×283 |
H | 250 | 290 | 325 | 440 | 590 | 640 |
250 | 290 | 325 | 440 | 590 | 640 | |
200 | 245 | 272 | 352 | 431 | 510 | |
L | 90 | 97 | 110 | 150 | 170 | 295 |
L1 | 60 | 81 | 92 | 115 | 110 | 200 |
D1 | / | 80 | 80 | 105 | 122 | 130 |
D2 | 32 | 60 | 60 | 80 | 95 | 100 |
n-φd | / | 2-Φ10 | 2-Φ10 | 4 -Φ12 | 4 -Φ14 | 4 -Φ18 |
